Low-voltage Switchgear: the "Smart Butler" of Power Distribution

Low-voltage switchgear is widely used in power plants, substations, industrial and mining enterprises, high-rise buildings and other places. It is an important part of the power system and silently guards the safety of electricity. In this article, we will unveil the technical veil of low-voltage switchgear.

Part 1: What is Low Voltage Switchgear?
Low Voltage (LV) Switchgear is an assembly used in AC power systems up to 1000V, DC systems up to 1500V, and frequencies up to 1000Hz. Its core function is the distribution, control, and protection of electrical energy. Imagine it as a "compact power fortress," integrating LV switching devices, measurement instruments, control systems, and protective relays within a vertical, enclosed structure. If electricity were parcels, the switchgear is the precise "smart sorting hub." Misrouting power can cause circuit faults or dangerous "fireworks" (short circuits and fires).

Part 2: Components Inside

Structural Framework:

Enclosure: Welded from robust 2mm cold-rolled steel plates, offering protection up to IP54 rating (resisting dust and water splashes) – a sturdy armor for internal components.

Busbar System: High-conductivity copper or aluminum busbars act as the electrical "highway," efficiently transmitting power to branch circuits.

Mounting Rails & Terminals: Provide secure placement for components and ensure stable, reliable electrical connections.

Functional Units:

Switching Devices (Circuit Breakers, Fuses, Contactors): Act as the circuit "gatekeepers," controlling power flow on demand.

Protection Devices (Relays, Earth Switches): Serve as vigilant "safety guards," constantly monitoring circuits. They instantly trip upon detecting overloads, short circuits, or earth faults to prevent damage.

Monitoring Instruments (Voltmeters, Ammeters, Energy Meters): Function as the system's "eyes," providing real-time data on voltage, current, and power consumption for engineers.

Cooling Systems (e.g., Film Cooling Modules): Prevent overheating during prolonged operation, ensuring stability.

Part 3: How It Works: The "Traffic Controller"
The LV switchgear operates like a power system's "traffic cop":

The main circuit breaker acts as the master switch ("gatekeeper"), controlling overall circuit connection/disconnection.

Protective devices (fuses, relays) constantly monitor current. Detecting abnormalities like overloads or shorts, they instantly isolate the faulty section ("safety guards in action").

Busbars distribute power to branch circuits ("distributing traffic"), which then deliver it safely and stably to end equipment via cables.

Part 4: Core Functions: Beyond Simple Switching
LV Switchgear performs several vital roles:

Power Distribution: Receives incoming power and allocates it safely and efficiently to various loads and circuits.

Power Control: Houses switching devices (breakers, contactors) for manual or automatic control of circuits (starting/stopping equipment).

System Protection: Integrates critical safeguards against overloads, short circuits, earth faults, undervoltage, and overvoltage to prevent equipment damage.

Power Monitoring: Advanced units feature meters (voltage, current, power) for real-time system performance tracking and energy usage insights.

Remote Control & Monitoring: Modern switchgear often supports remote operation and data access via communication networks.

Fault Diagnostics: Protection and monitoring devices record operational data, aiding rapid fault identification and resolution.

Flexible Configuration: Designed for adaptable wiring, facilitating circuit modifications or expansions as needs evolve.

Safety Isolation: Provides safe power isolation points for secure equipment maintenance.

Part 5: Common Types: Fixed vs. Withdrawable

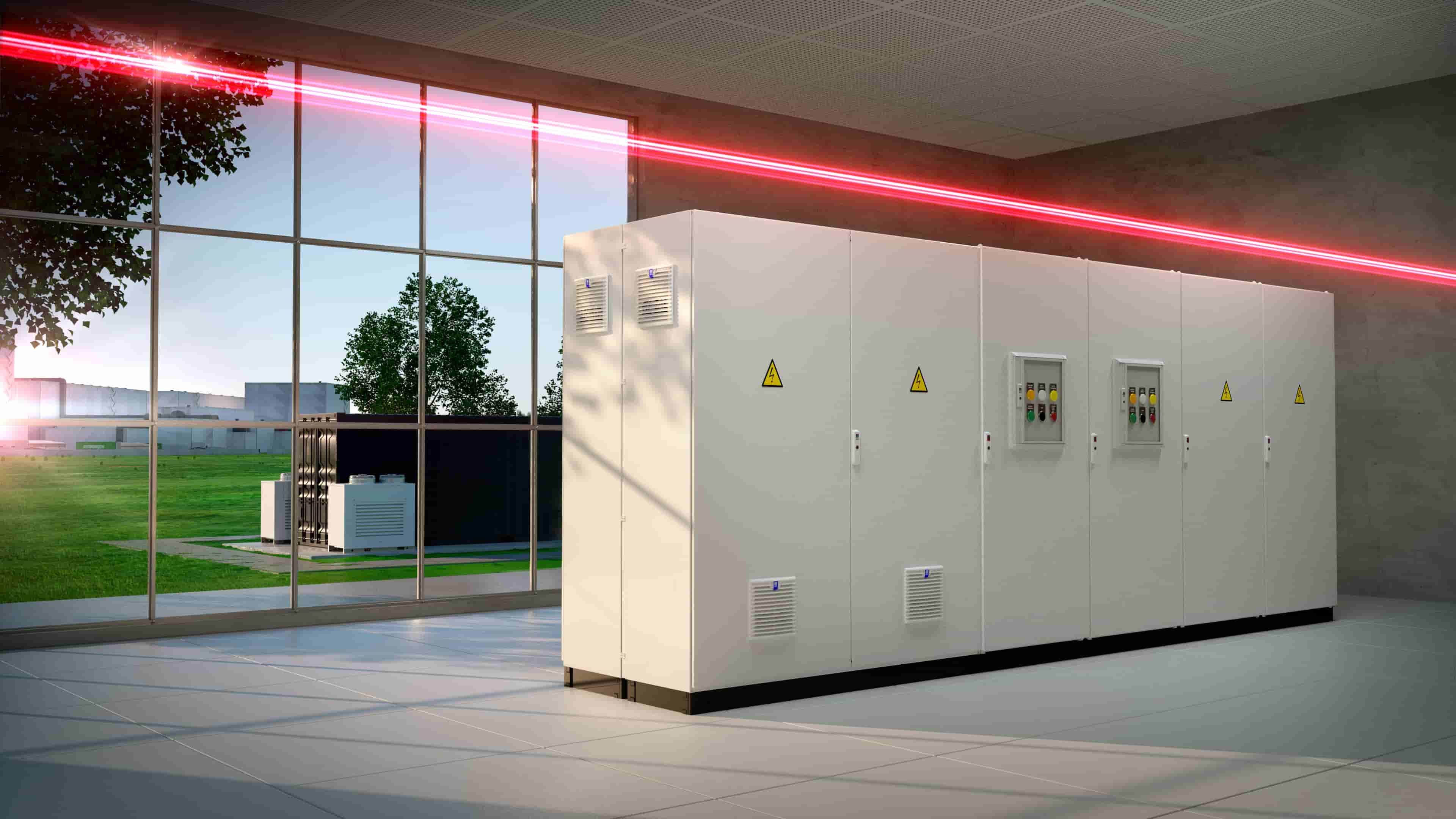

Fixed Type: Components are permanently mounted. Benefits include simplicity, ease of maintenance, and lower cost. Best suited for stable applications with fewer circuits where space isn't critical (e.g., GGD cabinets).

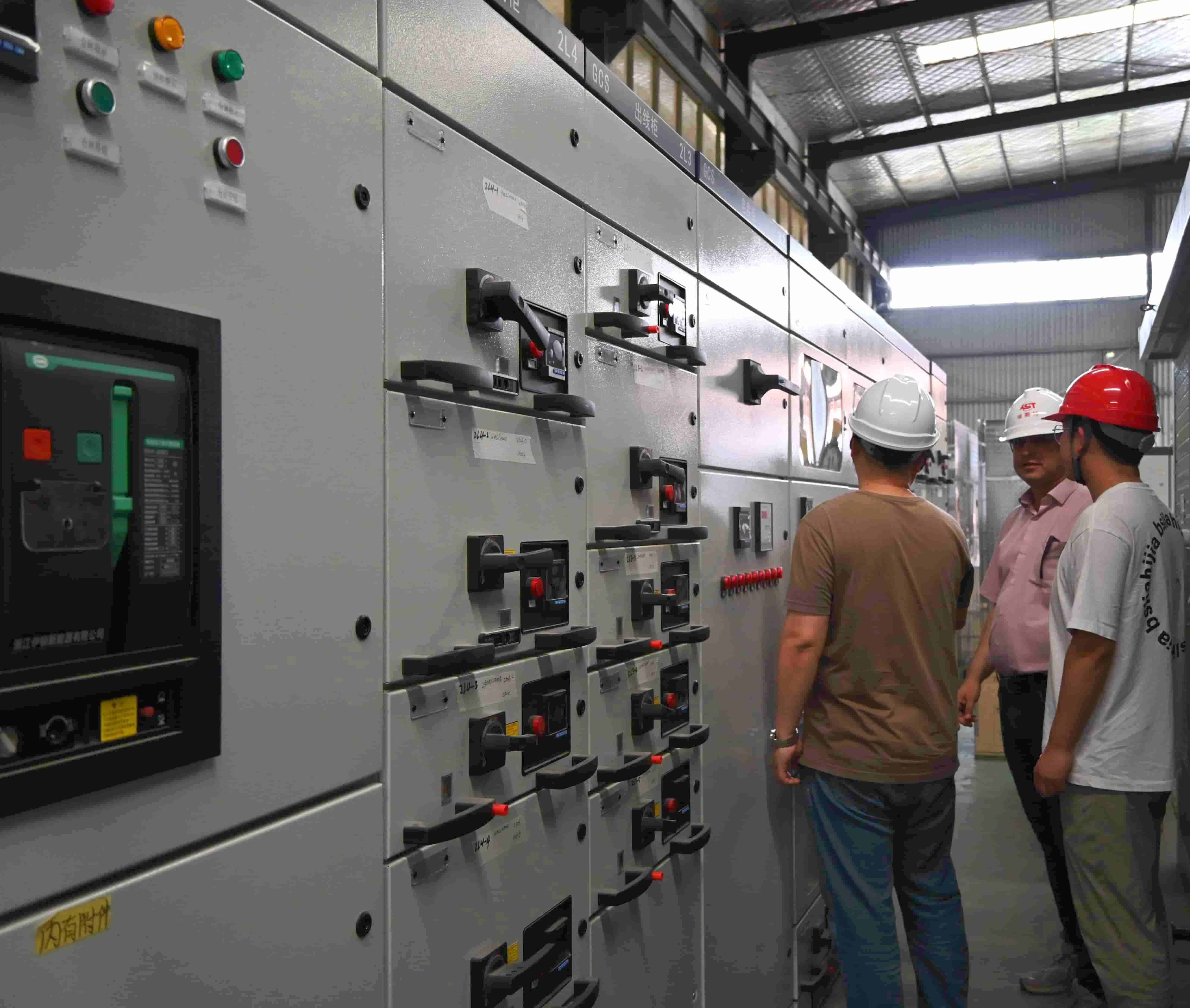

Withdrawable Type: Components are housed in removable drawers. The major advantage is minimized downtime during maintenance – faulty drawers can be swapped quickly. Ideal for sites demanding high power continuity like hospitals or data centers (e.g., GCS, GCK, MNS cabinets).

Part 6: Main Models

GGD: The classic fixed-type, known for simplicity, cost-effectiveness, and broad applicability.

GCS, GCK, MNS: Withdrawable types featuring modular designs. They offer high circuit density, easy maintenance, and exceptional flexibility to meet diverse needs.

Part 7: Model Comparison: GCS vs. GGD vs. GCK vs. MNS

MNS leads in performance (current & fault tolerance) and flexibility.

GCS/GCK offer good withdrawable functionality within their ratings.

GGD is the economical fixed solution for less demanding applications.

Part 8: Where It's Used: Powering Critical Sectors
LV Switchgear is essential across industries for controlling, protecting, and distributing power:

Industrial Manufacturing: Controls motors, heaters, and machinery on production lines.

Commercial Buildings: Distributes power throughout offices, retail spaces, and complexes.

Healthcare Facilities: Ensures reliable power for critical medical equipment and lighting.

Transportation Infrastructure: Manages power for traffic signals, EV charging stations, and rail systems.

Energy Generation & Distribution: Used in power plants and substations for effective power management.

Data Centers: Provides critical power distribution and control for servers and cooling systems.

Water/Wastewater Treatment: Controls electrical systems in treatment plants.

Renewable Energy (Wind/Solar): Distributes and controls power output from generation sites.

Part 9: Installation Essentials

Location: Choose dry, well-ventilated areas free from corrosive gases, dust, direct sunlight, and moisture.

Mounting: Select the appropriate method (wall-mounted, freestanding, fixed, mobile) based on site conditions and user requirements for stability and accessibility.

Wiring: Follow electrical diagrams and labels meticulously. Ensure connections are correct, secure, neat, and free from looseness, shorts, or grounding issues.

Commissioning: Conduct under expert supervision. Verify all component functionality, perform necessary tests, and eliminate potential hazards before energizing.

Part 10: Technical development trend of low voltage switchgear
LV Switchgear technology is rapidly evolving:

Smart Automation: Integration of sensors and communication modules enables remote monitoring, predictive maintenance, fault analysis, and intelligent energy management.

Compact Modular Design: New materials and manufacturing techniques yield smaller cabinets, saving space. Enhanced modularity boosts flexibility and simplifies installation/expansion.

Eco-Conscious Focus: Development focuses on sustainable materials and optimizing system intelligence for greater energy efficiency.

Enhanced Safety & Reliability: Innovations like double-door designs further improve personnel safety and operational dependability.

Standardization: Increased standardization streamlines production and simplifies maintenance/upgrades.

Higher Power Handling: Capacities are increasing (now up to 6300A+) to meet the demands of large-scale modern infrastructure.
