20KV Oil Immersed Transformer

Product Introduction

AISITE 20kV Oil-Immersed/ Oil-filled Transformers offer a cost-effective solution for your network. Whether it is for managing a urban or rural network, or for simply improving your energy efficiency, or optimized cost efficiency solution to connect power plants to supply systems or to link together networks with different voltage levels, we have the mature solution for any transformer application. Ground mounted, pole mounted or high-efficiency oil type transformers all form part of our extensive range.

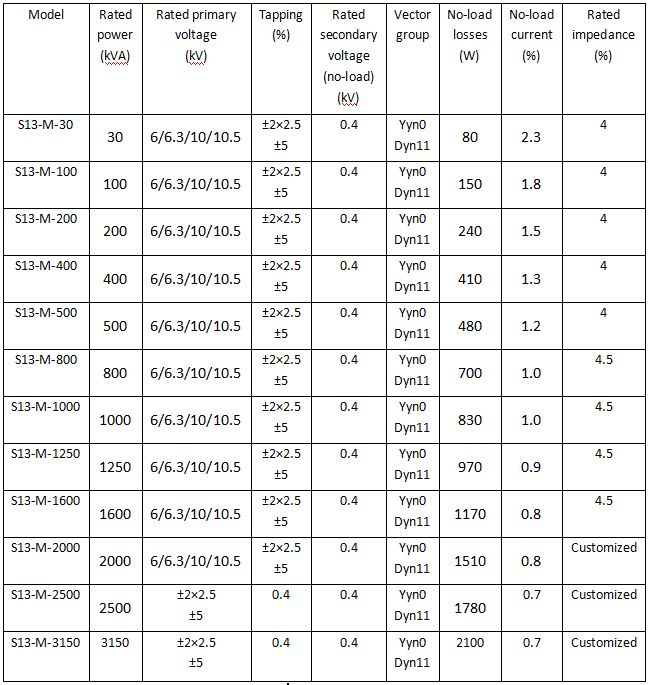

Technical Specification

Features

Strong heat dissipation performance, suitable for outdoor and harsh environments.
The winding is immersed in insulating oil to improve insulation performance and protect internal components.
The insulating oil of oil-immersed transformers has high heat capacity and dielectric strength.
The vacuum drying and oil filtering and oil filling process are used to reduce moisture.

Strength

High efficiency: Oil-immersed transformers have high working efficiency. Since the insulating oil can provide a good cooling effect, the temperature of the winding inside the transformer is effectively controlled, thereby improving the operating efficiency of the transformer. In addition, the oil-immersed transformer also has low losses, can achieve high energy conversion efficiency, and reduce energy waste.

Reliability: Oil-immersed transformers perform well in terms of reliability. The insulating oil plays a good insulating role inside the transformer, which can effectively isolate the windings and prevent faults such as arcing and discharge. At the same time, the insulating oil can also stabilize the temperature and prevent the transformer from overheating, thereby increasing the life of the equipment. In addition, the noise and vibration levels of the oil-immersed transformer are relatively low, which helps to reduce the mechanical stress of the equipment and improve the reliability and stability of the equipment.

Safety: Oil-immersed transformers also have advantages in safety. Due to the good insulation properties of the insulating oil, electric shock accidents can be prevented to a certain extent. At the same time, oil-immersed transformers are usually equipped with complete safety protection measures, such as overload protection, short-circuit protection, etc., to ensure the safe operation of the equipment.

Application

Industrial: In the heavy-duty market, oil-immersed distribution transformers are used to step down the high voltage of nuclear power plants to levels suitable for machinery and equipment. Their ability to handle high loads and meet tough challenges makes them ideal for industrial environments.

Commercial: Shopping malls, office buildings, and various other commercial centers use oil-immersed voltage converters to efficiently distribute electricity.

Residential: In residential areas, these transformers provide the final voltage correction before electricity enters homes. Their longevity and efficiency help maintain a stable power supply.

Energy companies: Utility companies rely on oil-immersed transformers to manage the flow of electricity throughout their vast networks. Their ability to handle high voltages and provide constant efficiency is essential to meeting the needs of large populations.

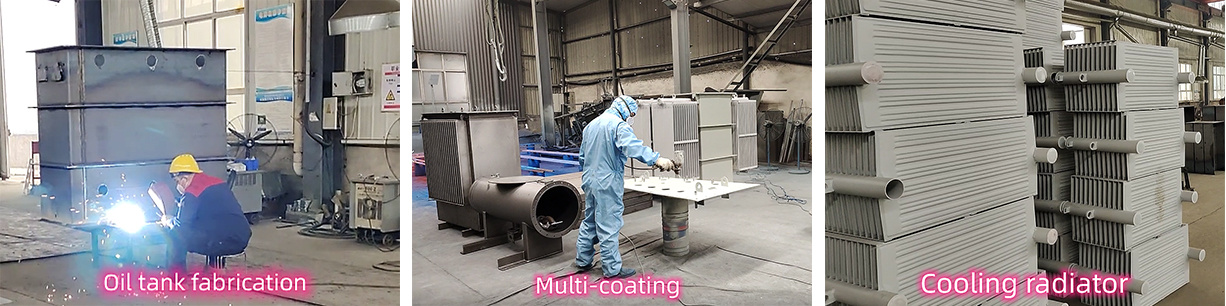

Production Process

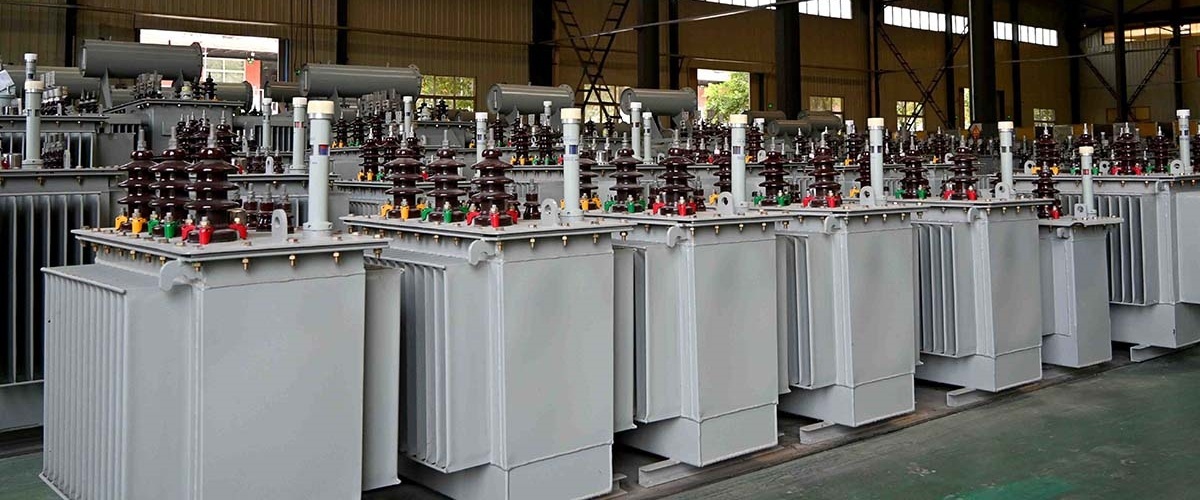

Manufacturer View

FAQ

Q: How safe are oil-immersed transformers, particularly regarding fire risk?

A: Modern designs ensure safety. They use fire-resistant insulating oils (e.g., mineral oil meeting IEC 60296 or biodegradable ester fluids) within robust, sealed tanks. Pressure relief devices activate safely during internal faults, and designs comply with strict international safety standards (IEC).

Q: Is oil leakage a concern, and what maintenance is required?

A: Our transformers feature fully sealed construction (e.g., corrugated tanks or welded conservator tanks), minimizing leakage risk. High-quality insulating oil maintains stable chemical properties under normal operation. Maintenance primarily involves periodic oil sampling/testing and condition monitoring, reducing long-term upkeep.

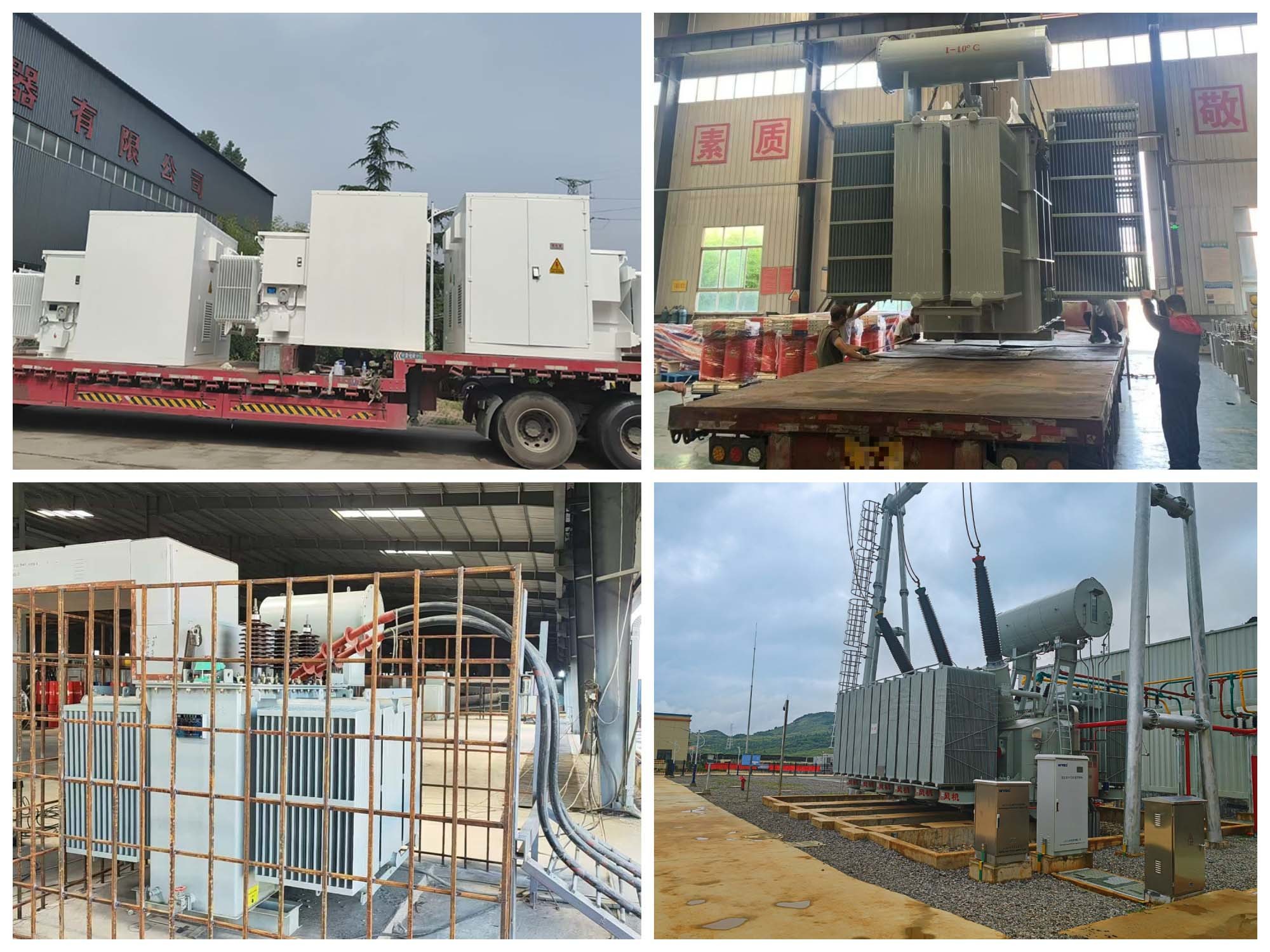

Q: How are oil-immersed transformers protected during shipping?

A: We provide export-grade packaging: robust wooden crates, internal bracing/shock absorption, oil level monitoring, pressure gauge protection, and desiccants. Detailed transport and handling instructions ensure secure delivery.

Q: Are special foundations or space requirements needed for installation?

A: A level, robust foundation is essential to support the weight and minimize vibration. We supply precise dimensional drawings, foundation specifications, required clearances (safety zones), and ventilation guidelines for proper site preparation and installation.

Why Choose US?

Rich Production Experience

With 15-year experience of production and sales, our transformers have been successfully exported to over 50 countries and regions, including Brazil, Tanzania, South Africa, etc.

Full Life-Cycle Support Service

We provide comprehensive technical support at ever stage of operation of your purchased equipment.

Professional Sales Team

Our globally-experienced sales engineers provide tailored power solutions and precise technical guidance, ensuring optional project fit for your specific requirements.

Pursue Innovation and Excellence in Serving Customers

Our technical and sales team are committed to providing customized solutions with cutting-edge technology that solve the toughest challenges facing electricity supply and meet the most stringent needs defined by the industry.
