GCS Low-voltage Withdrawable Switchgear
The core feature of GCS low-voltage withdrawable switchgear is its modular withdrawable structure, which is suitable for distribution systems with AC 50Hz (60Hz) and rated voltage of 400V/660V and below.
keyword：
GCS Low-voltage Withdrawable Switchgear
Category：
DESCRIPTION
Product Description |
GCS low voltage Switchgear is suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other industries. In large-scale power plants, petrochemical systems and other places with a high degree of automation and requiring interface with computers, as a power generation and power supply system with a three-phase AC frequency of 50 (60) Hz, a rated working voltage of 400V, 660V, and a rated current of 5000A and below A low-voltage complete set of power distribution devices used in power distribution, motor centralized control, and reactive power compensation.

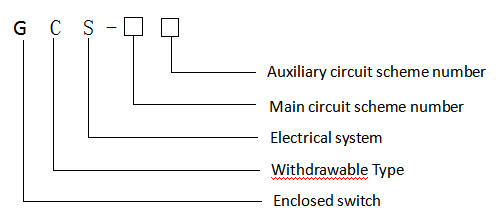

Code and implication
Structure |
The main circuit scheme of the GCS low voltage switchgear has a total of 32 groups of 118 specifications, excluding schemes and specifications derived from changes in the control and protection of auxiliary circuits. Including the needs of power generation, power supply and other power users, the rated working current is 5000A, and it is suitable for distribution transformers of 2500kVA and below. In addition, the capacitor compensation cabinet is designed to meet the needs of improving the power factor of power supply and consumption, and the reactor cabinet is designed considering the needs of comprehensive investment.
Features |
High safety: The withdrawable structure and multiple interlocks greatly reduce the risk of maintenance operations.
High reliability and good continuous power supply: Faulty units can be quickly isolated and replaced to avoid downtime of the entire system.
Easy maintenance and testing: The drawer can be placed in the test position for safety testing or pulled out for maintenance.
Strong flexibility and scalability: The modular design makes configuration changes and future expansion simple and easy.
High degree of standardization: Ensure equipment compatibility and simplify procurement and spare parts management.
Space saving: Compared with fixed switch cabinets with the same function, the structure is more compact.
Clear and reasonable layout: The busbar room, functional unit room, and cable room are clearly separated and the wiring is neat.
Application |
Critical power loads
UPS power distribution in data centers, power supply for hospital operating rooms (zero-interruption maintenance required)
Process industries
DCS systems in chemical plants, rolling mill control in steel plants (frequent start-stop equipment)
Smart buildings
Core power distribution rooms in super-high-rise buildings (limited space requires dense wiring)
New energy
Wind farm converter control cabinets (impact-resistant design required for high-vibration environments)
