YBM Box Substation - European Box Substation (Composite Board)
YBM box-type substation is a prefabricated, modular power equipment with a composite panel shell structure. It integrates high-voltage switchgear, transformers, and low-voltage distribution systems and is widely used in power grids, industries, commerce, and renewable energy projects to achieve the reception, transformation, and distribution of electric energy.
keyword：
YBM Box Substation - European Box Substation (Composite Board)
Category：
DESCRIPTION
Product Description |
YBM box-type substation is a prefabricated, modular power equipment with a composite panel shell structure. It integrates high-voltage switchgear, transformers, and low-voltage distribution systems and is widely used in power grids, industries, commerce, and renewable energy projects to achieve the reception, transformation, and distribution of electric energy.

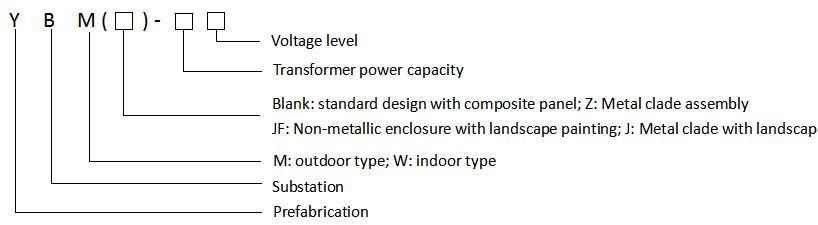

Code and implication
Structure and Material |
Shell material: Composite board, usually made of glass fiber reinforced material (GRP) or epoxy resin composite material, has the characteristics of light weight, high strength, corrosion resistance, and strong weather resistance.
Modular design: divided into high-voltage room, transformer room and low-voltage room, which can be flexibly combined to meet different capacity requirements (such as 50kVA to 2500kVA).
Features |
Lightweight and durable: The composite board is about 30%-50% lighter than traditional steel boards, and does not require anti-corrosion treatment, with a service life of more than 30 years.
Fire resistance: The material is self-extinguishing and meets European fire protection standards (such as EN 13501-1).
Heat insulation and energy saving: The composite board has low thermal conductivity, reduces internal temperature rise, and reduces air conditioning energy consumption.
Environmental protection and safety: No heavy metal pollution, excellent insulation performance, and reduced risk of electric shock.
Application |
Urban power grid: power distribution transformation in densely populated areas such as residential areas and commercial centers.
Industrial projects: power distribution and voltage reduction in factories and mines.
Renewable energy: grid connection and power conversion of wind farms and photovoltaic power stations.
Infrastructure: places with high reliability requirements such as subways, airports, and hospitals.
Manufacturer's View |
